High Quality X-ray Baggage 5030 Scanner New X-ray Inspection System, Best Selling 5030 Security Inspection X-ray Baggage Scanner Machine Available in Pakistan.

This Scanner machine Approved by Govt of Pakistan Nuclear Regulatory Authority, World Best X-ray Scanner 5030 Safety Security Smart Xray Luggage Detector Screening Baggage Scanner Machine High quailty new Designed to thwart the cleverest attempts at hiding weapons, drugs, stolen goods and other contraband, New 5030 X Ray inspection systems are ideal for screening everything from small packages to oddly shaped items and palletized loads.

Application Area:

Work Principle:

Image Performance:

• Enhancement of image is more clear
• Display High resolution liquid crystal display
• Brighter/darker Make image more bright /make image darker
• Times size of image Make image back to 1 times size of image
• Color management architectures Different color, different matter
• Zoom in/zoom out Make the image bigger, make the image smaller
• To eliminate organic Inorganic out ln view of the most important image
• Replay Playback all images on the screen at current, be able to do the next steps
• High penetration Make the image more through, to look every goods in one image
• Inverse. white/black/colorized For comparing these images to find the suspected dangerous goods

General Specifications:

• Noise 56.3 dB
• Penetration 14mm steel
• X ray leakage <1.0 μGy/h
• Conveyor Speed(m/s) 0.2
• Conveyor height(mm) 663
• Conveyor Max Load(kgs) 100
• Power Consumption max. 1KW
• Tunnel size(mm) 505(L)*305(W)
• Film Safety Guarantee ASA/ISO1600
• X ray dose per each inspection3.0 μGy
• Wire Resolution dia 0.0787mm copper wire (AWG40)
• Spatial resolution: Horizontal:dia1.0mm,Vertical: dia1.0mm
• Penetration Resolution dia 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm

X-ray Generator:

• Anode Voltage 100 kv
• Generate angle 80 degree upward
• Generate direct from bottom to top
• Anode power 0.4-1.2mA (adjustable)
• Cooling / Duty Cycle Oil Cooling /100%

Image System:

Image Recall All preceding images recallable, retrieval

X-ray Sensor L-Shaped Photodiode Array (multi-energetic) , 12bit Deep

Image Display High resolution of 1024 * 1280 pixel; Image Grey Level: 4096

Explosives & Narcotics Detection Explosives & narcotics alarm and highlight according to atomic number signature

High Density Region Alarm Impenetrable region alarm and highlight, for possible concealing of threats & contrabands

Images process 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags

Image Archive Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats

Image Enhancement 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.

Network Applications Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc (Optional)

Miscellaneous Functions Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, system log, system standby and stimulant training, ADS etc.

Threat Image Projection Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability

Operating Environment:

1. Operation Power 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
2. Storage Temperature/Humidity -40℃to 70℃ / 5%-95%(non-condensing)
3. Operation temperature/Humidity 0℃-45℃ / 5%-95%(non-condensing)
4. UPS 15mins, 30mins, 60mins etc, (optional)

Computer and other:

• CPU G1610 2.6G
• Hard Disk Seagate 500G 3.5”
• Main board H61 SYM76993VGG
• Storage 2GB 1600MHz DDR3 Innodisk
• Monitor High Resolution Color, LCD Accord,17inch,19inch,21inch or bigger size for optional.

Physical Specifications:

1. Unit weight (kgs) 284
2. Packing size 180*88*138cm
3. Unit size (mm) 1660(L)*746(W)*1165(H)
4. After packed in wooden pallet Gross weight (kgs) 400

Compliance:

International ISO19001 ; ISO14001 ; OHSMS18001 ; CE , USA , FDA Maximum X-ray leakage of less than 5 μSv/h(0.5mR/h) measured at 5cm from any external surface. (European standard – less than 1 μSv/h(0.1mR/h) measured at 10cm from any external surface). and National China Health Inspection Report. Computer Software Copyright Registration Certificate. Software Product Registration Certificate. Radiation Safety Certificate from Ministry of Public Security.

The technology used in X-ray baggage inspection has advanced significantly in recent years, & Modern machines are able to provide high-quality images that make it easier for operators to identify potential threats. X-ray baggage inspection is widely used in airports, train stations, and other transportation hubs, as well as in government buildings and other high-security facilities.

The X-ray baggage inspection is a technology used for the security screening of luggage and other items. The process involves passing the baggage through an X-ray machine that emits electromagnetic radiation in the form of X-rays. The X-rays pass through the baggage and create an image of the contents on a screen, which is monitored by a trained operator.

The operator is able to detect any potentially dangerous items, such as weapons or explosives, that may be hidden in the baggage. X-ray baggage inspection is a non-intrusive method of screening, and it allows for the detection of dangerous items without the need for physical searches.

Image Performance System:

• Edge enhancement—The edge of image is more clear
• Display—High-resolution liquid crystal display, 24-bit color
• Brighter/darker—Make image more bright /make image darker
• Times size of image—Make image back to 1 times size of image
• Zoom in/zoom out—Make the image bigger, make the image smaller
• X-ray sensor—L type photodiode array detector (energy), 24 bi depth
• C: Color management architectures—Different color, different matter
• To eliminate organic. Inorganic out—ln view of the most important image
• Replay—Playback all images on the screen at current, be able to do the next steps
• High penetration—Make the image more through, to look every goods in one image
• Inverse. white/black/colorized—For comparing these images to find the suspected dangerous goods

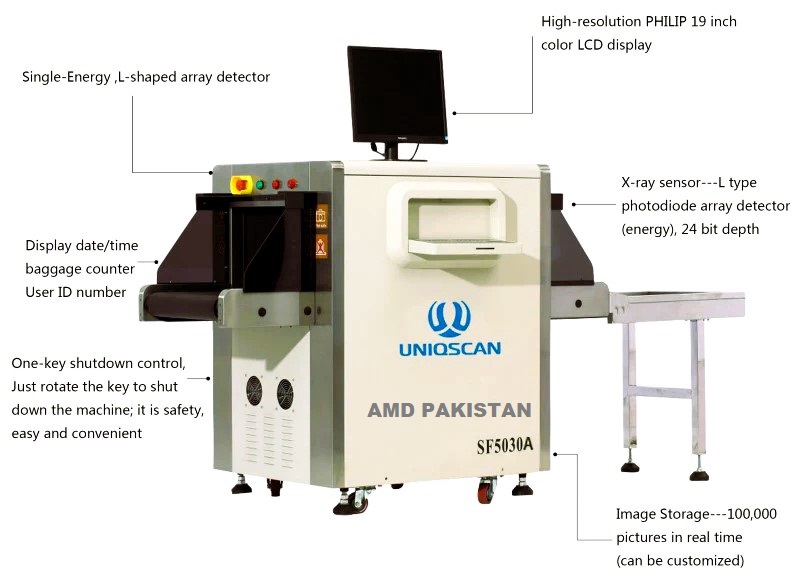

The UNIQSCAN SF5030A is a model of X-ray baggage scanner that is widely used for security screening in airports, train stations, and other transportation hubs, as well as in government buildings and other high-security facilities. The UNIQSCAN SF5030A is a compact and versatile scanner that can be used to screen a wide range of baggage sizes and shapes, from small bags and purses to larger suitcases and boxes. It uses a high-energy X-ray generator to create detailed images of the contents of the baggage, which are displayed on a color monitor for analysis.

Key Features and Performance:

1. Conveyor Speed: Smooth and efficient scanning at 0.22m/s for a steady inspection workflow.
2. Wire Resolution: Detects wires as fine as 38AWG, ensuring precise threat detection even for minute objects.
3. Film Safety: Certified safe for ISO 1600 film, protecting photographic and sensitive media from radiation damage.
4. Radiation Safety: Extremely low single inspection dosage of <1.32pGy, guaranteeing safety for both operators and passengers.
5. Steel Penetration: Capable of penetrating up to 10mm of steel, allowing identification of concealed items within dense materials.
6. Tunnel Size: 500mm (Width) x 300mm (Height), allowing easy screening of small to mid-sized luggage, backpacks, and parcels.
7. Maximum Load Capacity: With a 150kg load limit, the SF5030A accommodates heavier baggage without compromising performance.
8. Imaging Technology: Equipped with a cutting-edge L-shaped array detector and 24-bit color depth, this scanner delivers crystal-clear imaging that enhances object identification accuracy.

New SF5030A is designed for high-volume screening operations, and it features a fast scanning speed and a user-friendly interface that makes it easy for operators to identify potential threats. It also includes advanced imaging technologies, such as automatic threat detection and image enhancement, to improve the accuracy and efficiency of the screening process. UNIQSCAN SF5030A is built to comply with international safety and security standards, and it includes a range of safety features, such as radiation shielding and interlocks, to ensure the safety of both operators and passengers. It is a reliable and effective tool for enhancing security in a variety of settings, and it is widely used by security professionals around the world.

High sensitivity luggage scanning x-ray machine TS-6550 Best X-ray Inspection System 6550A Baggage Scanner. Security inspection 6550 Best xray scanner machines, x ray baggage scanner Machine Provider Company AMD in Pakistan.

Model: 6550 X-Ray Scanner Typical Steel penetration 34mm Designed to thwart the cleverest attempts at hiding weapons, drugs, stolen goods and other contraband, 6550A X-ray inspection systems are ideal for screening everything 6550 X-ray security screening equipment widely used in airports, railway stations, bus stations, government buildings, embassies, convention centers, exhibition centers, hotels, shopping malls, major events, post offices, schools, logistics, industrial inspection and other places.Model characteristics and configuration: All parts imported , clear image, strong penetrating power, long service life, using the latest international standards.

Product Highlights:

• Auto archiving
• Network ready
• Easy to operate
• One key turn off
• Baggage counter
• Secure access Key
• Energy saving design
• Multilingual operation
• Latest software update
• Uninterruptable power supply
• Indication of the date and time
• Drugs and explosives inspection
• Threat alert and material classification
• Automatic built in test and self diagnosis

Application:

Public Security Inspection Series Inspection Objects: Bagagge, mail, handbag, Parsal, draw-back case, luggage.

Appli Public places like Shopping Center, Library, Museum, Office, Theaters, Stadium, Hotel, School, Police Stations, Commercial buildings, factories, courthouses, embassies, government buildings, military installations, all public institutions like prisons, hotels, schools, convention centers and all security checkpoints etc…

Work Principle 6550 Machine :

X – ray security inspection equipment Model 6550 has the baggage handling, X ray source and control part, signal acquisition and processing and the transmission part and the image processing part and electric control part. X – ray security inspection equipment will send checked baggage into the crawler channel to complete the transfer with the help of the conveyor belt. Goods into the channel, detection device and relevant information will be sent to the control unit, the X – ray source emitting X rays by the control unit triggers. X ray through the collimator form very narrow fan beam,through the conveyor belt into the luggage on the detector, the X – ray detector transfers received Xray into the electrical signal.The weak current signal is amplified to quantify, Transmitted through the universal serial bus to the industrial control computer for further processing, and afteroperation imaging processing complex to obtain high quality images.

Physical Specifications:

• Unit weight (kgs) 575
• Packing size #1: 237*105*166cm
• Unit size (mm) 2195(L)*902(W)*1362(H)
• After packed in wooden pallet – Gross weight (kgs) 700

General Specifications:

• Noise < 58 dB
• Penetration 12mm steel
• X ray leakage <1.0 μGy / h
• Conveyor height(mm) 695
• Conveyor Speed(m/s) 0.22
• Conveyor Max Load(kgs) 200
• Power Consumption max. 1KW
• Tunnel size(mm) 650(L)*500(W)
• X ray dose per each inspection 2.0 μGy
• Film Safety Guarantee ASA/ISO1600 Film
• Spatial resolution: Horizontal:dia1.0mm,Vertical: d
• Wire Resolution dia 0.102mm copper wire (AWG38)
• Penetration Resolution dia 0.16mm copper wire (AWG34) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm

X-ray Generator single:

• Anode Voltage 120 KV
• Generate angle 80 degree upward
• Generate direct from bottom to top
• Anode power 0.4-1.2mA (adjustable)
• Cooling / Duty Cycle Oil Cooling /100%

Image System:

1. Image Recall All preceding images recallable, retrieval
2. X-ray Sensor L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
3. Image Display High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
4. Explosives & Narcotics Detection Explosives & narcotics alarm and highlight according to atomic number signature
5. High Density Region Alarm Impenetrable region alarm and highlight, for possible concealing of threats & contrabands
6. Images process 24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags
7. Image Archive Up to 100,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
8. Image Enhancement 1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
9. Network Applications Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc (Optional)
10. Miscellaneous Functions Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, system log, system standby and stimulant training, ADS etc.
11. Threat Image Projection Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability

Operating Environment:

• Operation temperature/Humidity 0℃-45℃ / 5%-95%(non-condensing)
• Storage Temperature/Humidity -40℃to 70℃ / 5%-95%(non-condensing)
• Operation Power 220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)

Computer and other:

• CPU G1610 2.6G
• Hard Disk Seagate 500G 3.5”
• Main board H61 SYM76993VGG
• Storage 2GB 1600MHz DDR3 Innodisk
• Monitor High Resolution Color, LCD Accord,17inch,19inch,21inch or bigger size for optional

Compliance:

International ISO19001 ; ISO14001 ; OHSMS18001 ; CE , USA , FDA Maximum X-ray leakage of less than 5 μSv/h(0.5mR/h) measured at 5cm from any external surface. (European standard – less than 1 μSv/h(0.1mR/h) measured at 10cm from any external surface). and National China Health Inspection Report. Computer Software Copyright Registration Certificate. Software Product Registration Certificate. Radiation Safety Certificate from Ministry of Public Security.

♥ ♥ ♥ ♥ ♥ ♥
